Product information:
Frame
- Steel-tube frame, white
- With spring-assisted ‘SAM’ mechanism for easy set up
- Patented ‘DSF’ pressure distribution system for even weight distribution
- 245-cm overhang
- Gas springs provide damping for the arm in its highest position
- Integrated counterbalance weight
- In the play position, the DSF base frame guarantees perfect positioning with two locking pins, meaning the unit doesn’t move – even after the most forceful dunks
- Can be set to a competition height of 260 cm and 305 cm
- Patented ‘dunk proof’ glass backboard
- Rear of the base frame equipped with ground anchoring set
- Easy fine-adjustment of the hoop height in the play position
- Forklift compatible for easy transport
Impact protection
- Impact protection panel with tarpaulin cover, approx. 20 cm thick in the impact zone
- Standard colour: Schelde blue
- Other colours (black, red, green and yellow) available as an option
Backboard
- Competition glass backboard, 180x105 cm
- 12 mm thick
- Enclosed in a metal frame
- With cutout for hoop attachment
- Includes foam padding on both sides
Hoop and net
- Made of solid steel
- Folds under weight (over 180° – ‘multidirectional’)
- Returns to its original position in a smooth, even motion
- Folds once approx. 105 kg is placed on the hoop
- Guarantees even rebounds
- With ‘Tube Tie’ hookless net-fastening system
- Nylon basketball net, 12-point suspension, white
Hoop attachment
- Hoop is attached directly to the frame using a plate
- No load is placed on the glass
Dynamic Sub Frame (automatic DSF)
- The system guarantees the correct playing position
- Distributes the weight of the unit across the U-shaped base frame
- Minimal load on the floor
- Ensures the unit remains perfectly counterbalanced, even in extreme situations such as during dunks
Castors
- Smooth-rolling castors with diameter of approx. 200x50 mm
- 4 swivel castors at the front (2x2)
- 6 fixed castors at the rear (2x3)
- Bearing-mounted wheels on rotary swivels with double receivers and mounted on ball bearings
- All wheels have non-marking surfaces
- Lubricated ball bearings
Instead of 2 individual castors at the front, the unit is supplied with 2 double castors. This minimises the amount of load on the ground. The unit therefore complies with DIN 18032.
Dimensions (HxWxD) and weight:
- When folded: approx. 210x180x445 cm
- Once set up: approx. 395x180x445 cm
- Weight: approx. 1,190 kg
Load distribution:
Transport position
- Front castors: approx. 560 kg
- Rear castors: approx. 630 kg
Play position
- Front castors: approx. 785 kg
- Rear castors: approx. 395 kg
Benefits:
- FIBA approved and recommended
- Free-standing
- Quick and easy handling
- Stable
- Easy to transport
Please check that your sports hall floor can bear the weight of this unit!
24-second units in compliance with FIBA regulations are available upon request. Please note: an additional spring is required in the DSF frame to balance the weight when a 24-second unit is mounted on the gas spring.
Tehnical details
Area of use | Club, School, Sports facilities |
|---|---|
Area of application | Indoor |
Version | Mobile unit |
Norm | DIN 18032 |
Board dimensions | 180x105 cm |
dunkable | Yes |
Basket to hinge down | Yes |
Net suspension | 12-point mesh eyelets |
Basket height adjustable | Yes |
Basket height adjustment | 260 cm-305 cm |
Max. Projection | 2.45 m |
Equipment | C, Counterweights In base frame, Transport castors |
Assembly dimensions | 395x180x445 cm |
Set-down dimensions | 210x180x445 cm |
Weight | Approx. 1.190 kg |
Scope of delivery | Basketball board, Basketball hoop, Basketball net, Basketball stand, Impact protection pads |

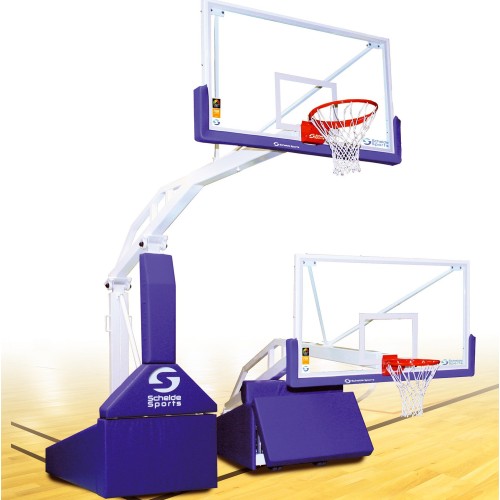

БАСКЕТ СЕТ ЗА КОШАРКА Schelde Basketball Unit “Super SAM 245” SportThieme
- Brand: Schelde
- Product Code: 400016
- Availability: Pre-Order
-
1,055,500.00ден
- Ex Tax: 894,491.53ден
Tags: БАСКЕТ СЕТ ЗА КОШАРКА
